Native iOS SDK instrumentation and tracking guide

Installation

The Marfeel SDK installation can be done via Swift Package Manager (SPM) or via Cocoapods.

Swift Package Manager

If you’re using XCode, Swift Package Manager (SPM) is part of it since version 11. Follow the official documentation using https://github.com/Marfeel/MarfeelSDK-iOS as the package repository.

If you’re using a Package.swift manifest file, include MarfeelSDK as one of your project dependencies:

import PackageDescription

let package = Package(
    name: "Sample",
    dependencies: [
        .Package(url: "https://github.com/Marfeel/MarfeelSDK-iOS", from: "2.18.8")
    ]
)

Cocoapods

Include the following line in your Podfile:

pod 'MarfeelSDK-iOS', '~> 2.18.8'

Setup

To use the library, we offer two diffrent options for defining the configuration.

Using Info.plist

add the following properties within the Info.plist file ensuring your unique account ID is correctly added before /* AccountId */:

<key>COMPASS_ACCOUNT_ID</key>
<integer>/* AccountId */</integer>
<key>COMPASS_ENDPOINT</key>
<string>https://events.newsroom.bi/</string>

Simply update the /* AccountId */ placeholder with your Marfeel Account ID, and keep the rest of the code unchanged.

Using CompassTracker static method

Call before any tracking the initialize method

func intialize(accountId: Int, pageTechnology: Int?, endpoint: String?)

For instance

import MarfeelSDK_iOS

CompassTracker.initialize([accountId: 0](https://hub.marfeel.com/compass/dashboard?accountId=0))  // just configuring accountId

// or

CompassTracker.initialize([accountId: 0](https://hub.marfeel.com/compass/dashboard?accountId=0), pageTechnology: 12345)  // use it instead if you want to use a custom page technology

We also offer a sample playground application to demonstrate how our SDKs can be used. You can access the GitHub repositories here: iOS Playground Application

Page Technology

The default value for the Page Technology dimension is set to iOS App represented by the value 3 . However, you can modify this default value adding the following property to Info.plist file:

<key>COMPASS_PAGE_TYPE</key>
<integer>$$COMPASS_PAGE_TYPE_VALUE_TO_BE_REPLACED$$</integer>

Custom Page Technologies have IDs above 100 and must be declared on the Organization Settings

Usage

To utilize the library, import the MarfeelSDK_iOS module.

import MarfeelSDK_iOS

All tracking features are made available through a CompassTracking class. To access CompassTracker, use the shared variable from any part of the application

let tracker = CompassTracker.shared

Page Tracking

CompassTracker automatically monitors user time on a page. When a user begins reading a new page, you should provide the page’s canonical URL.

tracker.trackNewPage(url: {URL})
tracker.trackNewPage(url: {URL}, rs: {String?})

In cases where you can’t provide the canonical URL you can use the Editorial Metadata API.

CompassTracker will continue tracking reading time until the trackNewPage method is called again with a different URL or until the developer explicitly invokes the stopTracking() method.

tracker.stopTracking()

tracker.startPageView() has been deprecated in favor of tracker.trackNewPage()

If you want to track a screen instead of a new page, particularly when your view doesn’t have a real URI, you can utilize the trackScreen method. This method accepts a raw name instead of an actual URI for tracking purposes.

tracker.trackScreen(name: {String})
tracker.trackScreen(name: {String}, rs: {String?})

Landing Page Tracking

If you want to inform about the landing page of the session, tracker provides for you the following method

tracker.setLandingPage(landingPage: {String})
tracker.setLandingPage(landingPage: {URL})

UTMs

If you want to include UTMs, you’ll need to add them to the landing page.

Scroll Tracking

To track scroll depth, you can provide the UIScrollView to both the trackNewPage and trackScreen methods.

tracker.trackNewPage(url: {URL}, scrollView: {UIScrollView}, rs: {String?})

tracker.trackScreen(name: {String}, scrollView: {UIScrollView}, rs: {String?})

User identification

To associate the app user to the records generated by the library, use the method serUserId, indicating the user ID in your platform.

tracker.setSiteUserId({USER_ID})

tracker.setUserId() has been deprecated in favor of tracker.setSiteUserId()

On the other hand, if you need to retrieve marfeel user id for forwarding it to one of our apis, the method you need to use is getUserId()

tracker.getUserId()

User Journey

You can specify the type of user with the options below. By default, if not specified, the user will be tracked as Anonymous.

tracker.setUserType(.logged)
tracker.setUserType(.paid)
tracker.setUserType(.unknown)
tracker.setUserType(.anonymous)
tracker.setUserType(.custom(8))

TIP:
It's recommended to first provide the user ID and the user journey information before initiating the tracking of the first pageview.

User RFV

If you want to access the RFV of the user within a session, you can retrieve it using the getRFV method.

tracker.getRFV { rfv in
   // Rfv` struct containing:
   //  - `rfv` (`Float`): The composite RFV score representing overall user engagement.
   //  - `r` (`Int`): Recency — how recently the user has visited.
   //  - `f` (`Int`): Frequency — how often the user visits.
   //  - `v` (`Int`): Volume — how much content the user consumes.
}

Conversion tracking

You can track conversions calling the trackConversion() method:

tracker.trackConversion(conversion: "{CONVERSION}")

tracker.track(conversion: "{CONVERSION}") has been deprecated in favor of tracker.trackConversion(conversion: "{CONVERSION}")

Conversion parameters

Just like in web, Conversion parameters are available for Native

tracker.trackConversion(
    conversion: "{CONVERSION}",
    options: ConversionOptions( // optional
        id: "{ID}", // each pair {CONVERSION} and { ID } will only be tracked once
        value: "{VALUE}",
        meta: ["key_1": "val_1", "key_2": "val_2"],
        scope: ConversionScope.page // page | session | user
    )
)

Keep in mind that trackConversion with the same conversion and options.id will only be tracked once

In the following example, if you send the first call:

tracker.trackConversion(
    conversion: "conv_1",
    options: ConversionOptions(
        id: "id_1",
        value: "3",
    )
)

A second call won’t be tracked because conv_1:id_1 has already been tracked:

tracker.trackConversion(
    conversion: "conv_1",
    options: ConversionOptions(
        id: "id_1",
        value: "4",
    )
)

Consent tracking

In order to mark if the current visit has consent approved or not, sdk offers the following method to use:

tracker.setConsent(true)

User data will be deleted each time the user closes the app if no consent is provided.

Custom Dimensions

Page vars

tracker.setPageVar(name: "name",  value: "value")

Session vars

tracker.setSessionVar(name: "name",  value: "value")

User vars

tracker.setUserVar(name: "name", value: "value")

User segments

Adds a new persistent user segment

tracker.addUserSegment("segment")

Replaces existing user segments

tracker.setUserSegments(["segment1", "segment2"])

Removes existing user segment

tracker.removeUserSegment("segment")

Clears all user segments

tracker.clearUserSegments()

Custom metrics

Page metrics

tracker.setPageMetric(name: "name",  value: 123)

Only integer values are accepted

Multimedia Tracking

All multimedia tracking features are made available through a MultimediaTracking instance. To access MultimediaTracker, use the shared variable in any part of the application

let multimediaTracker =  CompassTrackerMultimedia.shared

Exposed interfaces

public protocol MultimediaTracking {
    func initializeItem(id: String, provider: String, providerId: String, type: Type, metadata: MultimediaMetadata)
    func registerEvent(id: String, event: Event, eventTime: Int)
}

public enum Event: String, Codable {
    case PLAY = "play"
    case PAUSE = "pause"
    case END = "end"
    case UPDATE_CURRENT_TIME = "updateCurrentTime"
    case AD_PLAY = "adPlay"
    case MUTE = "mute"
    case UNMUTE = "unmute"
    case FULL_SCREEN = "fullscreen"
    case BACK_SCREEN = "backscreen"
    case ENTER_VIEWPORT = "enterViewport"
    case LEAVE_VIEWPORT = "leaveViewport"
}

public enum Type: String, Codable {
    case VIDEO = "video"
    case AUDIO = "audio"
}

public struct MultimediaMetadata: Codable {
    var isLive = false
    var title: String?
    var description: String?
    var url: String?
    var thumbnail: String?
    var authors: String?
    var publishTime: Int64?
    var duration: Int?
}

Note:
For the full list of available events (Event) and media types (Type), refer to the Multimedia tracking documentation.

To initialize a new media

CompassTrackerMultimedia.shared.initializeItem(
    id:"videoId",
    provider: "youtube",
    providerId: "youtube-video-id",
    type: .VIDEO,
    metadata: MultimediaMetadata.init(
        title: "title",
        description: "description",
        url: URL(string: "https://youtube.com/watch?v=youtube-vide-id"),
        authors: "authors",
        duration: 420
    )
)

To track a new event

CompassTrackerMultimedia.shared.registerEvent(id: "videoId", event: .UPDATE_CURRENT_TIME, eventTime: 150))

Recirculation Tracking

Track which elements in your app are shown, visible, and clicked. Works for any element you need to measure: recommendation modules, banners, CTAs, or anything else. The SDK reports eligibility, visibility, and clicks; your app decides what those elements are.

let recirculation = Recirculation.shared

Working example: see AllPostsView.swift in the Playground app for a complete recirculation tracking flow.

RecirculationLink

Represents a single trackable element within a module:

Property	Type	Description
url	String	Canonical URL of the element’s destination
position	Int	Zero-based position of the element within the module

public struct RecirculationLink {
    public let url: String
    public let position: Int
    public init(url: String, position: Int)
}

Tracking lifecycle

Each module must be tracked through its full lifecycle:

Method	When to call
trackEligible	The module has been selected and will appear in the current page view
trackImpression	One or more elements become visible on screen
trackClick	The user taps an element within the module

let recirculation = Recirculation.shared
let moduleName = "example-module-name"
let links = [
    RecirculationLink(url: "https://example.com/article-1", position: 0),
    RecirculationLink(url: "https://example.com/article-2", position: 1),
    RecirculationLink(url: "https://example.com/article-3", position: 2)
]

recirculation.trackEligible(name: moduleName, links: links)
recirculation.trackImpression(name: moduleName, links: [links[0], links[1]])
recirculation.trackImpression(name: moduleName, link: links[2])
recirculation.trackClick(name: moduleName, link: links[1])

All recirculation methods are fire-and-forget. The SDK dispatches on a background queue and silently ignores failures.

Experiences

The Experiences API lets you fetch experiences configured in Experience Manager for the current page so your app can render them. You can filter by type or family, resolve remote content on demand, and track user interactions. The SDK returns the configuration; rendering is the app’s responsibility.

All experiences features are made available through an Experiences instance:

let experiences = Experiences.shared

Working example: see BlogPostView.swift in the Playground app for a complete experiences fetch and tracking flow.

Fetching Experiences

Fetch experiences for the current targeting using fetchExperiences. The SDK automatically uses the URL from the active page being tracked. The result is delivered via a completion handler invoked on a background queue.

let experiences = Experiences.shared
experiences.fetchExperiences { result in
    // result is [Experience]
}

fetchExperiences requires the SDK to be initialized via CompassTracker.initialize(accountId:) and a page to be actively tracked via trackNewPage(url:rs:) or trackScreen(_:rs:). If no page is being tracked, an empty list is returned.

Each Experience contains:

Property	Type	Description
id	String	Unique experience identifier
name	String	Experience name from the server configuration
type	ExperienceType	Experience type (.inline, .flowcards, .compass, .adManager, etc.)
family	ExperienceFamily?	Optional experience family (.recommender, .paywall, .widget, etc.). nil when not specified by the server
placement	String?	Placement identifier
contentUrl	String?	URL to fetch the experience content from
contentType	ExperienceContentType	Content type (.textHTML, .json, .amp, etc.)
features	[String: Any]?	Arbitrary feature flags and configuration
strategy	String?	Placement strategy (e.g., replace, append)
resolvedContent	String?	The fetched content body, populated after calling resolve(_:) or when resolve = true
rawJson	[String: Any]	The full original JSON for accessing fields not explicitly modeled

Filtering

You can filter experiences by type, family, or both:

let experiences = Experiences.shared

// Filter by type
experiences.fetchExperiences(filterByType: .inline) { inlineOnly in
    // ...
}

// Filter by family
experiences.fetchExperiences(filterByFamily: .recommender) { recommenders in
    // ...
}

// Combine both filters (AND logic)
experiences.fetchExperiences(
    filterByType: .inline,
    filterByFamily: .recommender
) { inlineRecommenders in
    // ...
}

Available experience families:

Enum Value	Server Key
.twitter	twitterexperience
.facebook	facebookexperience
.youtube	youtubeexperience
.recommender	recommenderexperience
.telegram	telegramexperience
.gathering	gatheringexperience
.affiliate	affiliateexperience
.podcast	podcastexperience
.experimentation	experimentsexperience
.widget	widgetexperience
.marfeelPass	passexperience
.script	scriptexperience
.paywall	paywallexperience
.marfeelSocial	marfeelsocial

The Server Key is the raw string value returned by the server in the family field. Use it when accessing rawJson directly or when debugging API responses. When the server returns an unrecognized value, it maps to ExperienceFamily.unknown. When the field is absent, it is nil.

Content Resolution

By default, fetchExperiences does not resolve content. You can enable automatic resolution for all experiences that have a contentUrl, or resolve individually on demand:

let experiences = Experiences.shared

// No content resolution (default)
experiences.fetchExperiences { result in
    result.first?.resolvedContent // nil
}

// Resolve all content automatically
experiences.fetchExperiences(resolve: true) { result in
    result.first?.resolvedContent // contains the fetched content
}

// Resolve individually on demand
experiences.fetchExperiences { result in
    result.first?.resolve { content in
        // content is String?
    }
}

Custom Targeting

Add custom targeting key-value pairs that will be sent with every experiences request:

experiences.addTargeting(key: "key", value: "value")

Tracking

Each experience that your app consumes must be tracked through its full lifecycle. Call the appropriate method as each stage occurs. Tracking link interactions uses RecirculationLink, defined in the Recirculation Tracking section above.

Method	When to call
trackEligible	The experience has been selected and is intended to be shown on the current page view
trackImpression	The experience content has been rendered and is visible to the user
trackClick	The user tapped on a specific link within the experience
trackClose	The user dismissed or closed the experience

let experiences = Experiences.shared

experiences.fetchExperiences(filterByFamily: .recommender) { result in
    guard let recommender = result.first else { return }

    let links = [
        RecirculationLink(url: "https://example.com/article-1", position: 0),
        RecirculationLink(url: "https://example.com/article-2", position: 1),
        RecirculationLink(url: "https://example.com/article-3", position: 2)
    ]

    // The experience will be used in this page view
    experiences.trackEligible(experience: recommender, links: links)

    // First two links are visible on screen
    experiences.trackImpression(experience: recommender, links: [links[0], links[1]])

    // After scrolling, the third link becomes visible
    experiences.trackImpression(experience: recommender, link: links[2])

    // The user tapped a link inside the experience
    experiences.trackClick(experience: recommender, link: links[1])

    // The user dismissed the experience
    experiences.trackClose(experience: recommender)
}

Privacy

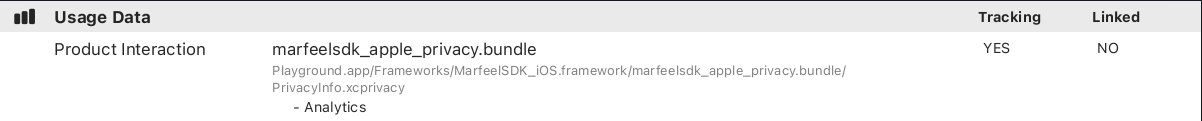

Marfeel sdk is compliant with new Apple privacy policies, listing in the PrivacyInfo.xcprivacy how the tracker interacts with user data. Starting on May 1st 2024, all new apps or updates are required to list how the app interacts with user data, including third party sdks.
